Integrated Circuits for Smart Detectors

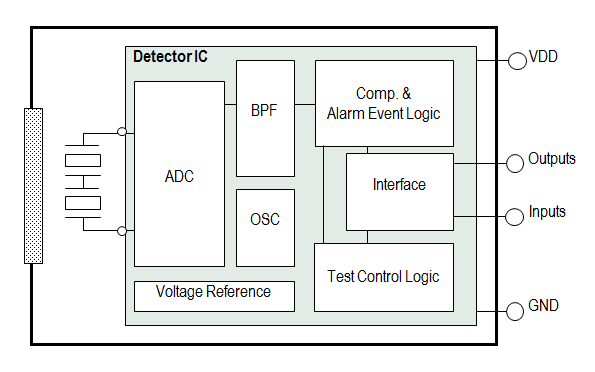

The PIR detector IC combines all functions required for motion detection. It has to be assembled together with the pyro ceramic element in the same package. The main benefits are immunity against RF noise, cost and space saving.
The new generation digital and smart detectors based on MOS integrated circuits eliminate the need for any analog circuitry.
All MOS products are CMOS based and manufactured and tested to the highest standards.
PIR Detector Controller — Motion Sensing IC
| Device name | E910.97 | E931.96 |
| Differential PIR input channels | 1 | 1 |
| Digital filter | Butterworth, BPF | Butterworth, BPF |
| Voltage regulator | Switchable Zener shunt regulator | Detector shunt regulator |
| Parameters | Adjustable sensitivity, adjustable on-time & output enable | Programmable through serial interface |
| Supply current | 12 µA | 7 µA |
| Unregulated supply | 3.3 V to 40 V | 2.7 V to 3.6 V |
| Output | Digital level REL output | Interrupt (motion) combined with data |
For datasheet and pricing enquiries contact sales@mos.co.za
